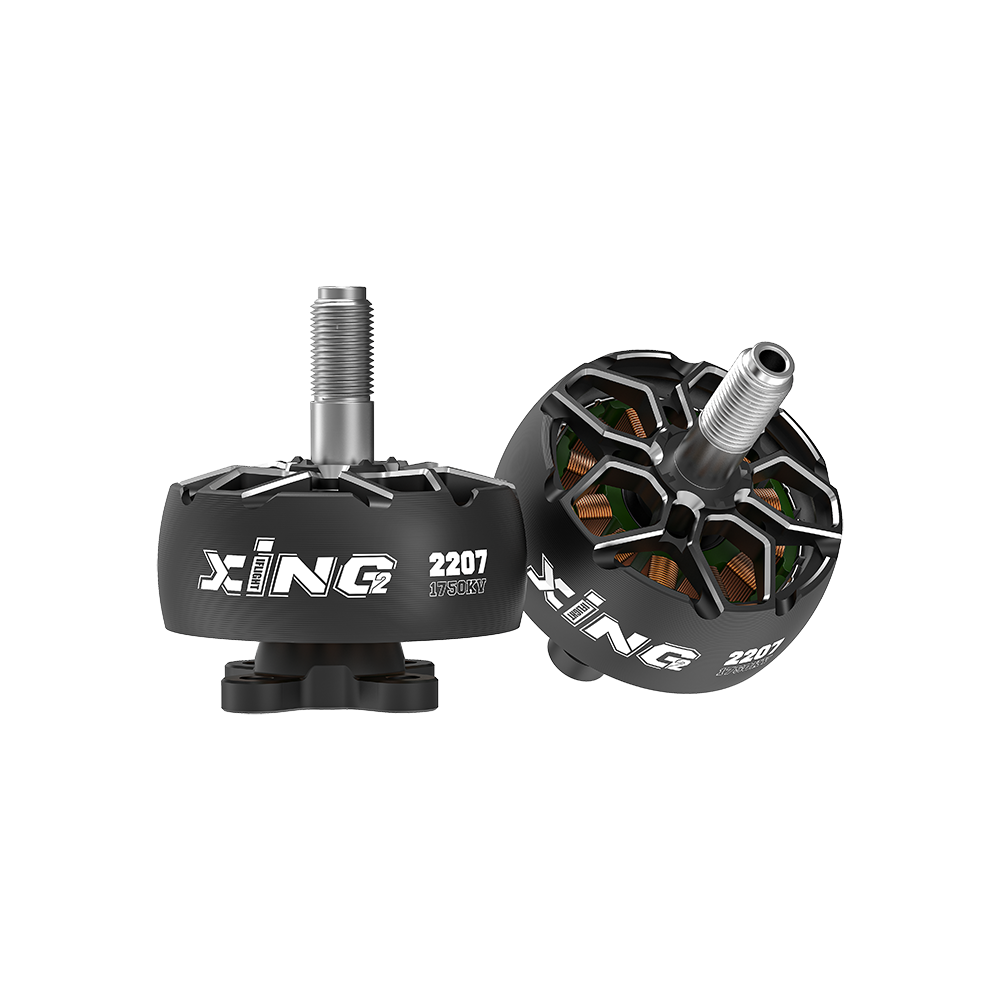

iFlight XING2 1750KV FPV Motor Unibell (Black)

₹1998 ₹2499

12 piece left

Specification

KV: 1750KV

Weight(included wire): 30.5g

Dimension: φ29*19.25mm

Interphase Resistance: 74.23mΩ(1750KV)

Input Volts: 25.2V (1750KV)

Peak Current: 36.3A(1750KV)

Max Watt: 898W(1750KV)

Mounting Holes: 16*16 φ3mm

Rotor Specifications:  Unibell

Shaft Diameter: 5mm

Shaft Protruding Length: 13.5mm

Lead: 160mm/20AWG

Magnet: N52H Curved

Configuration: 12N14P

Bearing Type: NSK

Bearing Specification: φ9*φ4*4

Winding: Single Strand copper winding

Packing List

1 x XING2 2207 Black Brushless Motor

4 x M3*10 screws (1750KV)

1 x M5 Flanged Nylon Insert Lock Nut
