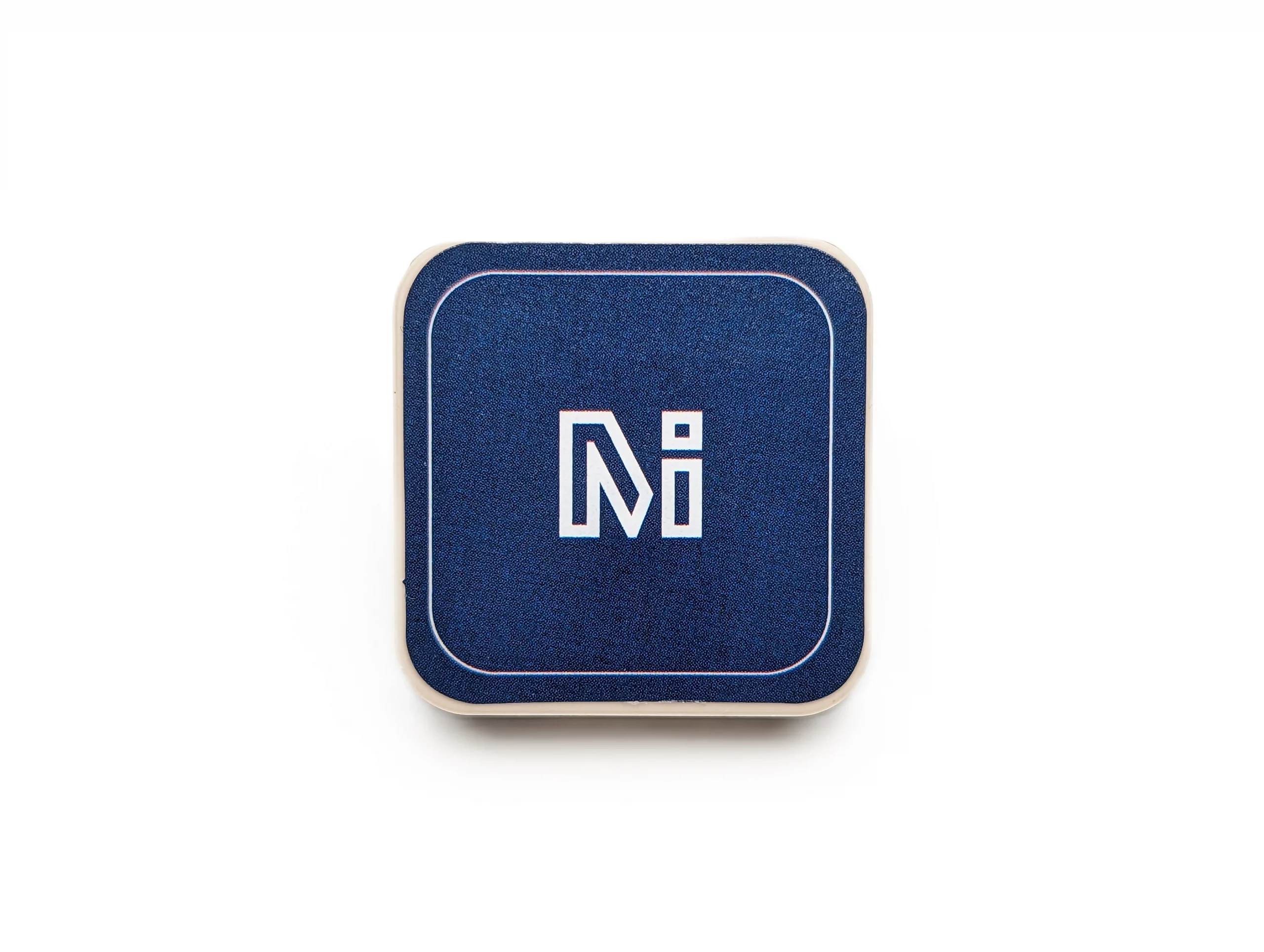

MicoAir MG-A01 GNSS Module

Specifications

• GNSS Receiver: U-BLOX M10 (M10050)
• Magnetic Compass: QMC5883L
• Antenna:  25x25x4mm
• GNSS System Support: GPS L1 /CA; GLONASS L10F; BeiDou B1L/B1C; Galileo E1B/C; QZSS L1 C/A/S; SBAS L1 C/A
• Concurrent: 3 (GPS/BeiDou/Galileo(default) or GPS/GLONASS/Galileo), when Beidou B1L is turned off, it becomes possible to use 4 satellite systems at the same time: GPS+BeiDou(B1C)+GLONASS+Galileo
• Max Navigation rate: 10Hz
• Max satelite num: 32

• Input Voltage: 5V
• Current: 30mA
• Output Interface(GPS): UART (3.3V LVTTL)
• Interface(Compass): I2C
• UART Baudrate: 115200(default)
• Output Protocol: UBX-PVT(default)
• PPS LED: Blue (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix )
