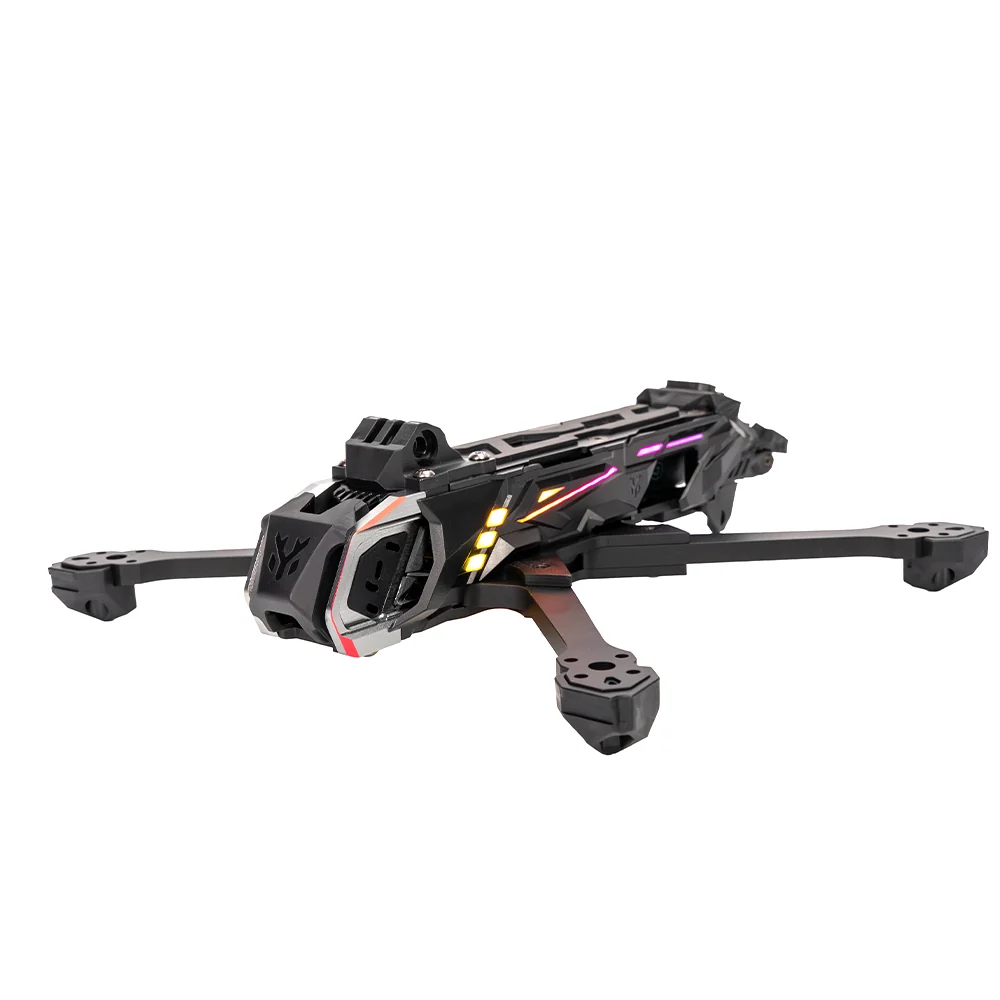

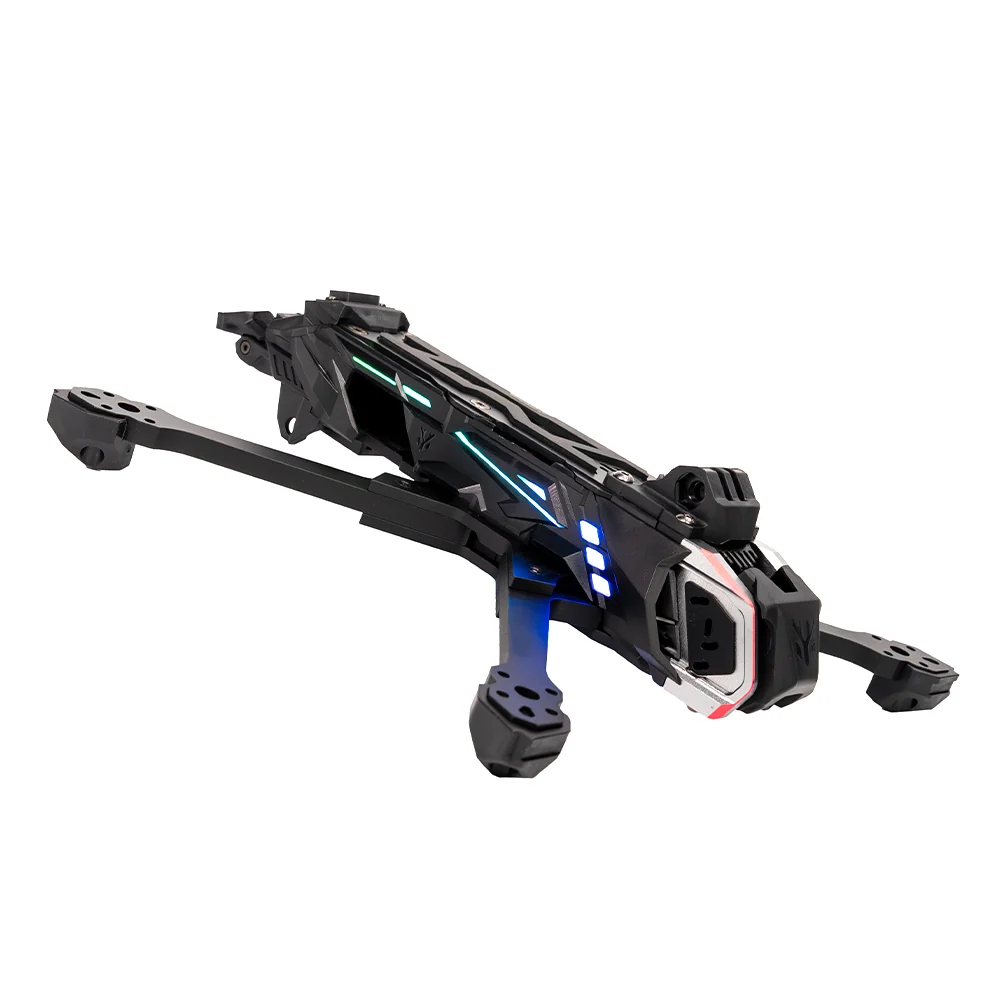

Product Features
- Streamlined high-strength frame: adopts a newly designed slender body, combining aesthetics and sturdiness to achieve a perfect balance between shape and high strength:
- Wear-resistant injection molded parts: abandon traditional FDM prints, use high-wear-resistant mold injection ABS\PP parts, significantly improve shock absorption and buffering performance and overall durability;
- Fully covered side plate protection: The side plate of the fuselage are fully covered to protect the internal electronic equipment without fear of flying sand and rocks intrusion;
- Independent quick-release receiver compartment: a dedicated independent receiver compartment is set up to say goodbye to the crowded and messy internal frequency debugging, maintenance and replacement are convenient and efficient:
- Colorful RGB lighting effect system: equipped with colorful RGB LED light strips, support independent APP wireless control, customized lighting effects, let your drone become the most dazzling focus in the night sky.
Product parameters
Product name: Nblade MAX
Frame: DC
Camera installation hole distance: 20mm/19mm
Camera installation hole position: O4, O3, analog
FC installation hole position: 20*20/30.5*30.5/φ3mm
Stack installation height 21mm
VTX installation hole position: 20*20/25*25/φ2mm
Motor installation hole distance: 19mm/φ3mm/4 holes
snap ring groove : 6mm
Applicable propeller size: 5.1inch (MAX)
Upper plate thickness: 2mm
Middle plate thickness: 3mm
Bottom plate thickness: 3mm
Arm thickness: 7mm
Head material: aluminum alloy
Receiver installation size: 20mm*11.7mm*5mm
VTX antenna installation hole position: round SMA*3
GPS installation size: 21mm*21mm
Capacitor installation size: φ10mm*45mm
Applicable VTX: DJI O4 PRO AIR Unit/ DJI O3 AIR Unit/Analog VTX
Frame weight: DC: 216g Ture X: 220g
